7600 Liquid Relief Valve

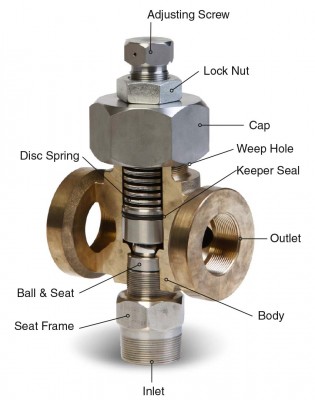

2inchLiquidLreiefCutawayHigh Pressure - to 8,000PSI • Pressure Control • High Volume - to 650 GPM

Designed for protection against over-pressure for vessels, pumps, flow lines and other applications. It is a rugged and versatile valve capable of handling a wide range of pressures.

  • Standard Valve is constructed from Aluminum-Bronze material
  • For 316SS Valve Replace “AB” With “316” In Part Number
  • Any flow from weep hole indicates that the keeper seal is worn and should be replaced.

2inchLiquidLreiefIllo

Material Specifications:

  • Body: 2" Aluminum-Bronze or 316SS
  • Ball & Seat: Sure Seal 316SS Double Sided Seat
  • Seat Frame: 316SS
  • Spring: Disc Spring
  • Inlet: 2” male NPT, Integral 2” 602, 1502
  • Outlet: Dual - 2" Female
  • Design: CRN (0C12907.2) to ASME B31.3

To view 7600 Product Brochure click below

7600 Liquid Relief
